Banded Cogged Belts
Application
Banded Belts combines the longer life and superior performance of the Cog-Belt with the stability of banded construction & Banded belts are also ideal for heavy industrial power transmission applications with vertical running shafts and large center distances. It can withstand impact loads, Oil and heat resistant, static dissipating etc are some of its exclusive features.
In the case of toothed Belts the teeth which run perpendicular to the Belt length reduces the bending stress over the Belt, they run cooler, lasts longer, and have a substantial operational efficiency compared to Wrap construction Belts. Toothed Belts can be used over the same pulleys as equivalently rated Wrap construction Belt Pulley. Toothed Belts are used in a wide array of mechanical devices, where high power transmission is desired.

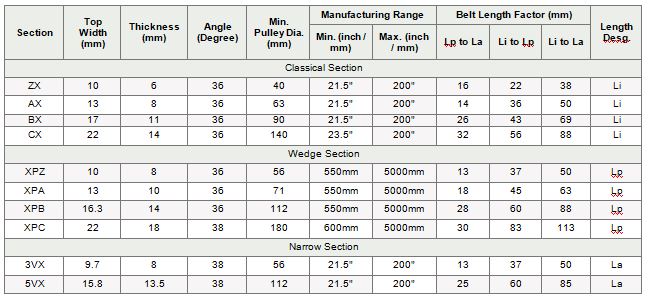

We offers a wide range of toothed Belts of various profiles, such as; ZX, AX, BX, CX, DX; Classical sections. XPZ, XPA, XPB, XPC, Wedge Belt sections. 3VX, 5VX, 8VX; Narrow sections. Besides the standard sections of toothed Belts.
Features
- Higher power transmission capacity than wrapped Belts.
- Special cog design for enhanced flexibility and heat dissipation rate.
- Suitable for drives using smaller diameter pulleys and high RPM.
- Anti-static, oil & heat resistant.
- Maximum Belt linear speed (Classical section: up to 30 m/Sec, Wedge: up to 42 m/Sec, Narrow: up to 45 m/Sec).
- Temperature range: -25째C to +100째C
